Machine shop supplies · 16 lines · 8 categories
Sixteen part lines, each tied to the standard it has to match.
The whole catalogue on one page: CNC toolholders and ER32 collets through to class ZZ gauge pin sets. Every line names its standard, the basis the price is quoted on and the lead time it usually runs, so you know what you are asking for before you ask.
Toolholding
CAT40, BT30 and HSK63A tapers, ER collets. Most wrong orders here are a BT holder bought for a CAT spindle.
-

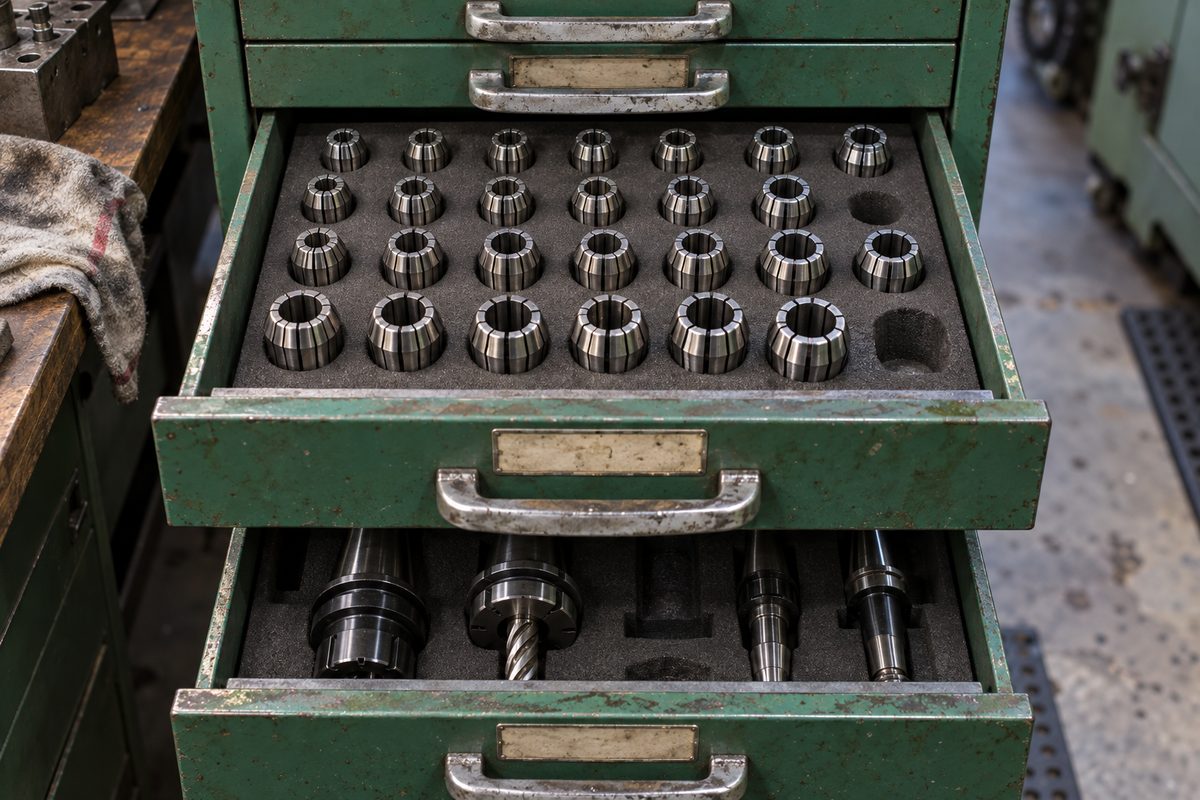

ER32 collets
Spring collets that clamp a 1 mm range below nominal, 2 to 20 mm. Sold singly for the size you keep losing, or as the 18-piece set in a rack.
- Standard
- ER32, DIN 6499
- Price basis
- Per collet or 18-piece set, quoted on inquiry
- Typical lead
- 1–5 business days
-
CAT40 end mill holders
Side-lock and collet-chuck holders on a CAT40 V-flange. Pull-stud thread matched to your drawbar, balance grade and rated RPM stated where the maker gives them.
- Standard
- CAT40, ANSI B5.50
- Price basis
- Per holder, quoted on inquiry
- Typical lead
- 1–5 business days
Cutting tools
Solid carbide and indexable. Chosen by what you cut, not by what is on the shelf.
-
Solid carbide end mills
3-flute uncoated or ZrN for aluminium, 4 or 5-flute AlTiN for steel and stainless. Regrinds only on request, and marked as regrinds.
- Standard
- Shank h6, DIN 6535 HA / HB
- Price basis
- Per piece, box pricing on 5 or more, quoted on inquiry
- Typical lead
- 1–5 business days
-
Indexable milling inserts
Matched by the full ISO code and the grade to the cutter body already on your spindle. Read the code off the old box, or the pocket, and we do the rest.
- Standard
- ISO 1832 designation
- Price basis
- Per box of 10, quoted on inquiry
- Typical lead
- 1–5 business days
Workholding
What holds the part while the spindle tries to pull it out. Sized by vise width and table slot.
-
Machinable soft jaws
Blank 6 in jaws in 6061 aluminium or 1018 steel for standard 6 in vises. You cut the pocket in your own vise, so it runs true to your spindle.
- Standard
- 6 in vise, bolt pattern by make
- Price basis
- Per pair, quoted on inquiry
- Typical lead
- 2–7 business days
-
T-slot strap clamp kits
52-piece kits: studs, T-nuts, flange nuts, couplers, step blocks and strap clamps in a rack. Sized by table slot width and stud thread.
- Standard
- Slot width + stud thread
- Price basis
- Per kit, quoted on inquiry
- Typical lead
- 2–7 business days
Spindle parts
Bearings, knobs and springs. We supply the parts. We do not rebuild spindles.
-
Angular-contact spindle bearings
Matched pairs in P4 / ABEC 7 with a 15° or 25° contact angle. We will not quote one without both, and neither should anyone else.
- Standard
- ISO P4 / ABEC 7, DB DF DT
- Price basis
- Per matched pair, quoted on inquiry
- Typical lead
- 5–15 business days
-
Retention knobs and drawbar springs
Pull studs to MAS 403 or ANSI profile, specified by machine model. Belleville spring stacks for the drawbar sold as the full stack.
- Standard
- MAS 403 BT / ANSI B5.50
- Price basis
- Per knob or per spring stack, quoted on inquiry
- Typical lead
- 2–7 business days
Linear motion
Screws and the rubber that keeps chips off them. The wiper is the cheap part. Replace it first.
-
Ball screws
Rolled C7 or ground C5, cut to length with end journals machined to your drawing or to the old screw. Lead stated in mm or TPI.
- Standard
- ISO 3408, grade C5 / C7
- Price basis
- Per assembly, cut to length, quoted on inquiry
- Typical lead
- 3–6 weeks
-
Way wipers
Matched to profile and bolt pattern from the torn one, or a photo with a rule laid across it. Nitrile or Viton lip by coolant type.
- Standard
- Profile + bolt pattern from sample
- Price basis
- Per wiper, quoted on inquiry
- Typical lead
- 5–10 business days
Coolant and lube
Concentrate and the pump that moves it. Rancid sumps start with a weak mix.
-
Semi-synthetic coolant concentrate
Runs at 6 to 8 percent for general steel work, higher for tapping and stainless. Refractometer factor supplied with the pail.
- Standard
- Mix ratio by operation, SDS supplied
- Price basis
- Per 5-gallon pail, quoted on inquiry
- Typical lead
- 1–5 business days
-
Coolant pumps
Immersion and flange-mount pumps matched to head, flow, immersion depth and voltage off the old nameplate. Photograph the plate before you clean it.
- Standard
- Nameplate head, flow, voltage
- Price basis
- Per pump, quoted on inquiry
- Typical lead
- 3–10 business days
Abrasives
Wheels marked in full and deburring gear for the edge the machine left behind.
-
Surface grinding wheels
Vitrified wheels with size, abrasive, grit, grade and bond marked, for example 32A46-H8VBE. Maximum RPM printed on the blotter. Ring-test before mounting.
- Standard
- ANSI B7.1 marking
- Price basis
- Per wheel, quoted on inquiry
- Typical lead
- 2–7 business days
-
Deburring tools and flap discs
Swivel blade handles with replaceable blades for steel, aluminium and cross holes. Zirconia flap discs in 40 to 120 grit.
- Standard
- Blade type, disc grit and arbor
- Price basis
- Per tool or per box of 10 discs, quoted on inquiry
- Typical lead
- 2–7 business days
Measuring
Indicators to sweep a bore and pins to prove a hole. Buy the resolution you will actually read.
-
Dial test indicators
Lever-type indicators in 0.0005 in or 0.0001 in graduation, standard or long contact points. The long point reads a deep bore and loses a little accuracy doing it.
- Standard
- Graduation + contact length
- Price basis
- Per indicator, quoted on inquiry
- Typical lead
- 2–10 business days
-
Gauge pin sets
Class ZZ steel pins, plus or minus, in 0.001 in steps across the stated range. Plus pins for go gauging, minus for no-go.
- Standard
- ASME B89.1.5, class ZZ
- Price basis
- Per set, quoted on inquiry
- Typical lead
- 2–10 business days
