Spindle horsepower calculator · milling
Find out if the pass will stall the spindle before the tool touches steel.
A spindle horsepower calculator for milling. Put in the material, the tool and the depths. It returns RPM, feed, metal removal rate, the horsepower the cut needs and what share of your spindle that is. Every formula is printed under it, so you can check the arithmetic on a napkin.
The calculator
Cut-load calculator, live as you type.
Loaded with the worked example below: 4140 pre-hard, half-inch 4-flute end mill, 10 hp spindle. Change any field.
Why the load matters
Chip load sets the finish. Horsepower sets whether it finishes.

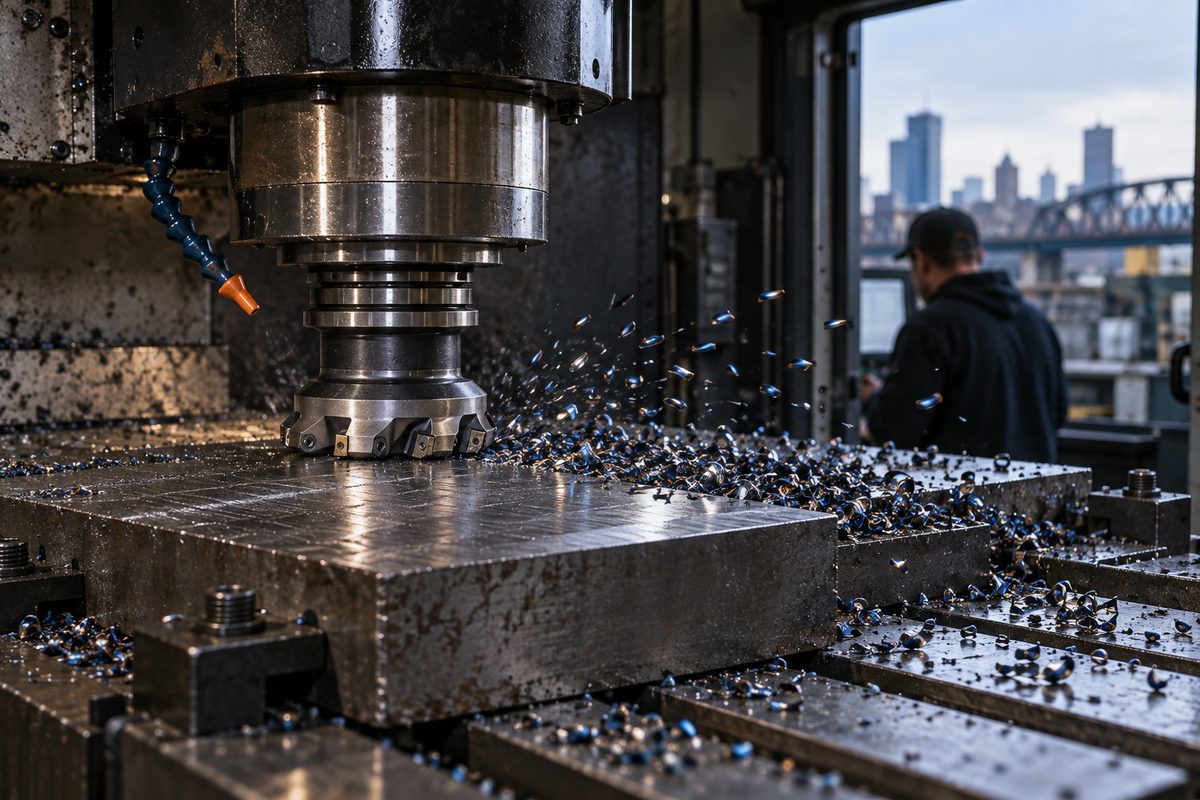

A 3 inch, 6-insert face mill at full width, 0.200 in deep in 1018 at 0.005 in per tooth, works out to about 10 hp by the formulas below. Put that on a spindle rated for less and the drive faults, the tool dwells, and the insert edge goes with it.
The arithmetic
Five formulas, nothing hidden.
Standard inch shop formulas. D is the cutting diameter in inches, ap the axial depth, ae the radial width.
- Spindle speedRPM = (SFM × 3.82) / D
- FeedIPM = RPM × flutes × chip load
- Metal removal rateMRR (in³/min) = ap × ae × IPM
- Spindle powerhp = MRR × unit power / 0.80
- LoadLoad % = hp / machine rating × 100
3.82 is 12 / π, which turns surface feet per minute into revolutions for a diameter in inches. kW = hp × 0.7457.
Worked example
A half-inch end mill in 4140 on a 10 hp spindle.
4140 pre-hard at 250 SFM. A 0.500 in carbide end mill, 4 flutes, 0.003 in per tooth. Axial depth 0.500 in, radial width 0.100 in, so 20 percent stepover. The spindle is rated 10 hp.
RPM = 250 × 3.82 / 0.5 = 1,910. Feed = 1,910 × 4 × 0.003 = 22.9 IPM. MRR = 0.5 × 0.1 × 22.92 = 1.15 in³/min. Power = 1.146 × 1.4 / 0.80 = 2.01 hp, which is 1.50 kW. Load is 20 percent of 10 hp.
Plenty of headroom. Double the stepover to 0.200 in and it is 4.0 hp and 40 percent. Go to a full 0.500 in slot at full depth and it is 10 hp, 100 percent, and the drive will fault or the tool will stall. Which is why nobody slots 4140 a full diameter deep with a half-inch tool.
The number most shops forget is that the 10 hp on the plate is usually a continuous rating at a stated speed. Below base speed a lot of spindles make less. If your machine is geared low, check the power curve in the manual, not just the plate.
| Material | SFM | hp per in³/min |
|---|---|---|
| 6061 aluminium | 800 | 0.30 |
| 1018 mild steel | 350 | 1.0 |
| 4140 pre-hard | 250 | 1.4 |
| 304 stainless | 200 | 1.5 |
| Gray cast iron | 300 | 0.8 |
| Ti-6Al-4V | 120 | 1.4 |
SFM figures are starting points for coated carbide. Unit power is at the cutter, before the 0.80 efficiency is applied. A dull tool can add 25 percent or more.
| Band | What to do | Load |
|---|---|---|
| Comfortable | Room to widen the stepover | under 70% |
| Watch it | Watch the load meter on part one | 70 to 90% |
| Reduce | Cut ae or ap | over 90% |
What it does not know
An estimate for starting parameters. Not a guarantee.
- Tool stick-out and holderA long tool chatters well before it runs out of horsepower. Power is not the only limit.
- Chip thinningBelow about 50 percent stepover, the real chip gets thinner than the programmed chip load. The calculator uses what you enter, not a corrected figure.
- WorkholdingA vise that slips at 3 hp does not care that the spindle has 10.
- Machine conditionWorn bearings, a slipping belt or a weak drawbar change what the spindle actually delivers.
Where the parts come from
If the numbers say the tool is wrong for the job, we sell the right one. Carbide end mills and indexable inserts are matched by material and coating. If a holder is adding runout and eating your chip load, CAT40 holders and ER32 collets are on the toolholding page.
And if the load meter reads high on a cut that used to be easy, look at the spindle before the program. Retention knobs, drawbar springs and bearings are quoted from your machine model.
